I mounted a K&K sound Big Twin internal transducer on a Raj Musicals sitar by Joël Van Roode (Alpacas Collective – Flugzeug Music Art Design). Since it is not always obvious to open a tabli, we chose to do an external mount. That is, the transducers are mounted on the outside (top) of the tabli. An advantage of this installation is that it is easy to look for an optimal positioning of the elements to obtain a good and balanced sound.
The disadvantage with this kind of rather simple set-up is that the jack connector connection is usually very sloppy and not very reliable. Therefore, I gave it some thought and opted to mount the jack connector on the taardaan (tailmount). This way, it is very firmly attached and there is also a very good grounding with the strings, which greatly reduces possible interference signals. The complete assembly is therefore relatively easy to do with this.
First, I drilled a hole in the taardaan and then drilled through into the tumba accordingly. Then a small hole was drilled in the tabli to route the wires to the connector.
Finally, the two transducers were glued in place, the retaining wires routed through the holes and soldered to the connector, the taardaan put back in place and the strings put back on. Done!
After finalizing the structural rough woodwork on the travel-sitar’s body (see Part 1 = Travel Sitar Mods (3A)) the final acts are: completing the body finish and preparing and installing the sitar’s hardware such as godi (jawari), machine heads, strings, pardas and eventually an electro-magnetic pickup.

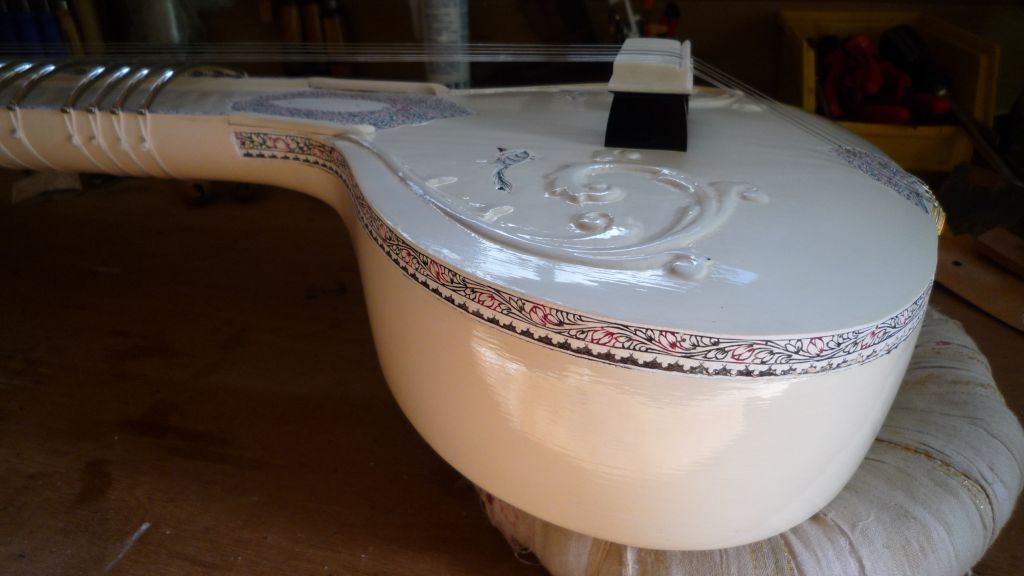

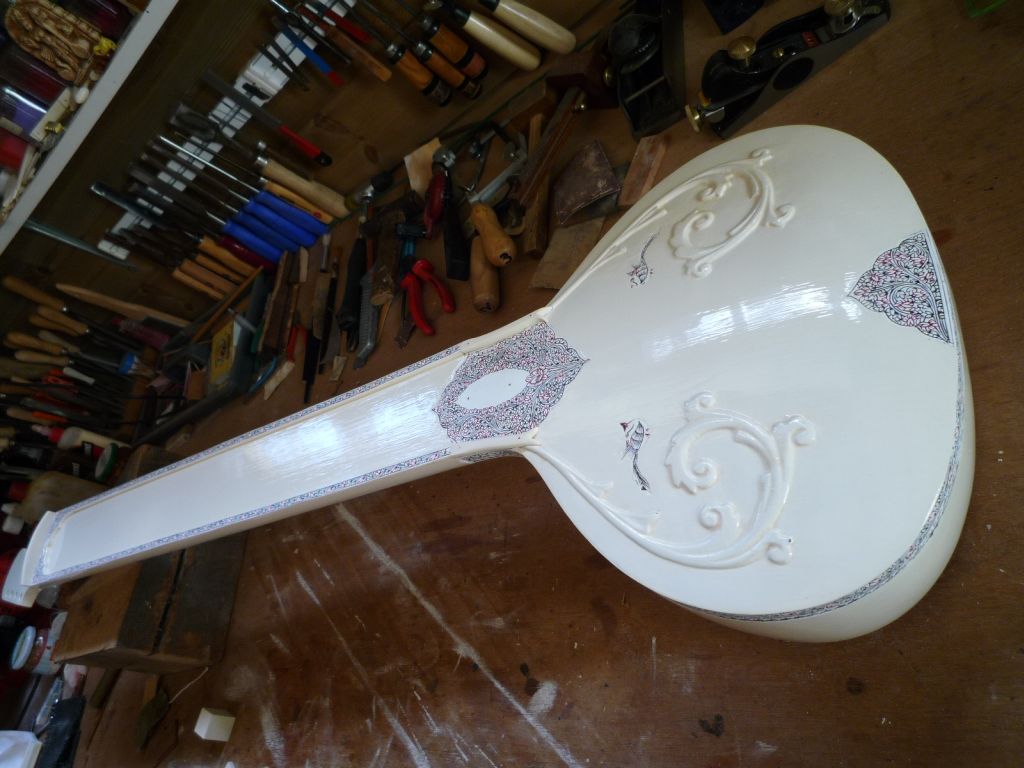

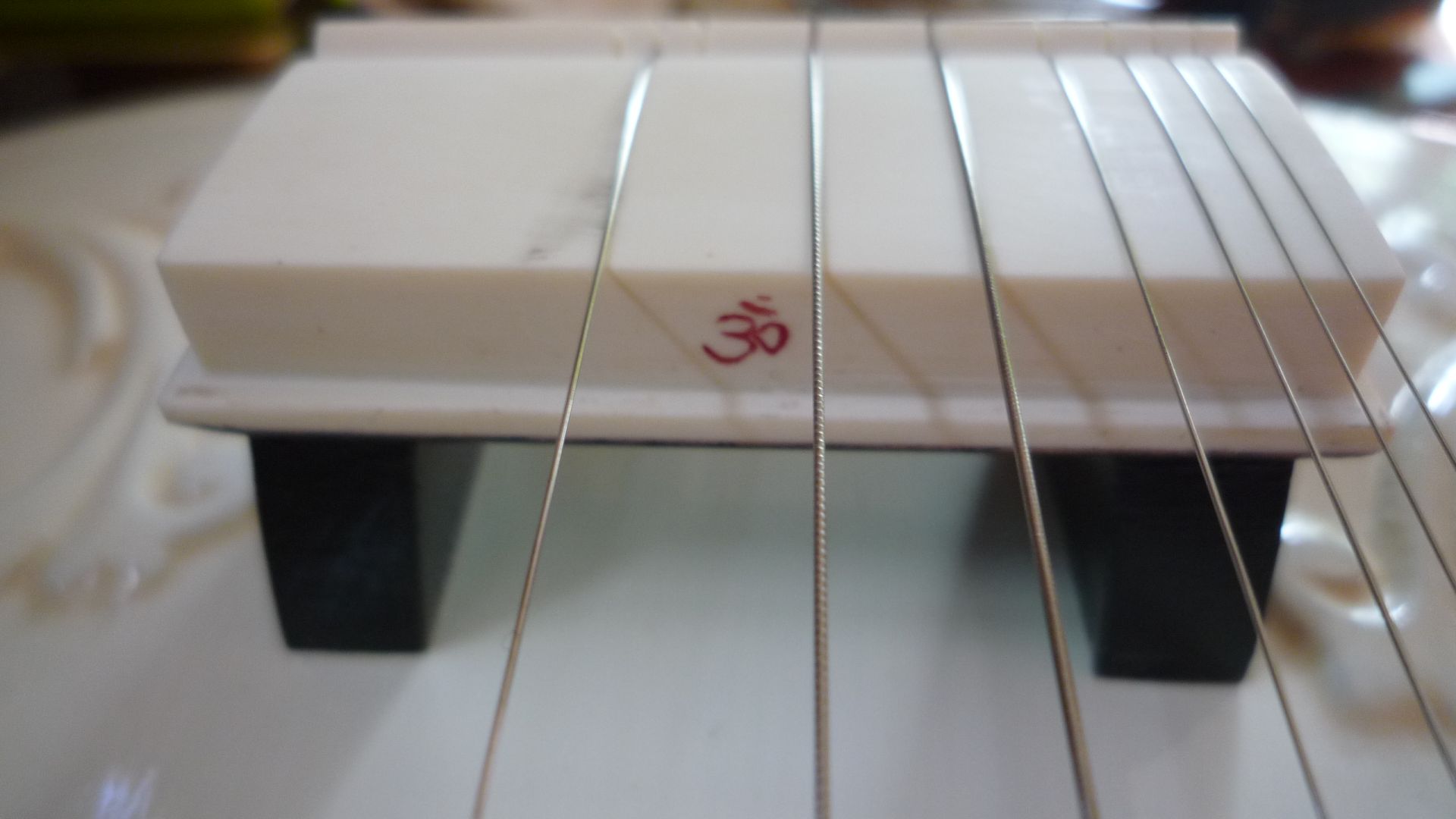

I’ve painted the body in white using Bio Pin™ waterbased organic white paint and Colortone™ high gloss waterbased finish. The patri, jawari, cikari machine head mount and cikari posts are all made out of Elforyn™. So it became a real “organic & vegan” sitar,… 100% suitable for vegetarians… 🙂

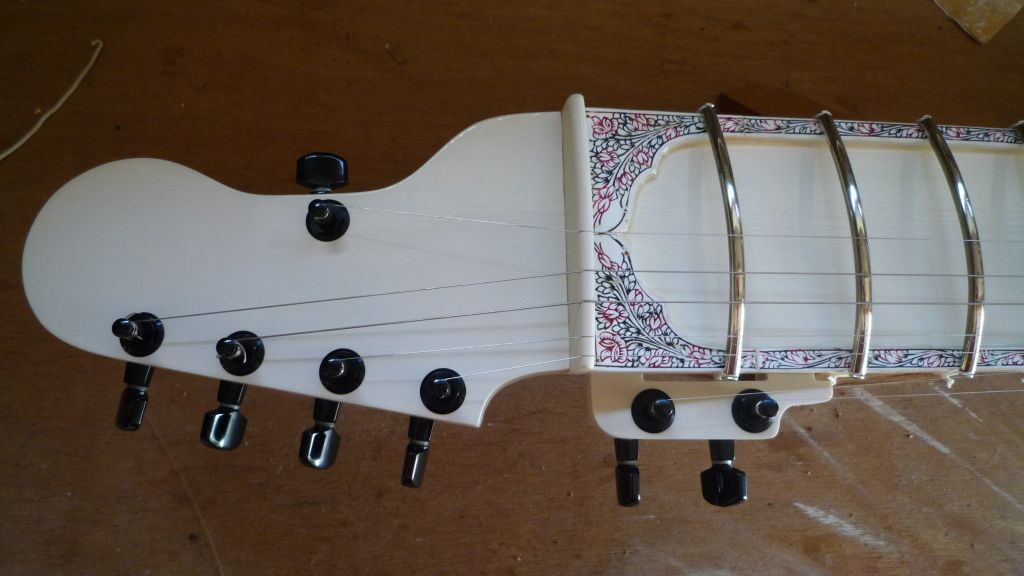

Installing 7 Schaller™ Mini M6 machine heads and 20 bronze pardas N°6.
Main strings gauges :
1) Baj tar : steel, 0,30mm (N°3)
2) Jora tar : nickel flatwound, 0,46mm (N°26)
3) Laraj tar : nickel flatwound, 0,56mm (N°24)
4) Gandhar tar : steel, 0,30mm (N°3)
5) Pancham tar : steel, 0,30mm (N°3)
6) & 7) Cikari tar : steel, 0,23mm (N°0)
In 1940, young Rikhi Ram Sharma was making harmoniums in Kartar Music House in Lahore.
One day a casual customer gets Rikhi Ram Sharma interested in a sitar. He finds and opens a simple 7 string sitar to find out how it is made and starts learning making sitars from Sher Mohammad & his son Mohammed Maksud Ali (Usef Mohammed Ali) who are running another music shop “Sher Mohammad Sitar Makers” in Bansanwala Bazaar, Lahore. They make and play sitars since many years.
There he also meets Mohan Singh (31 years old).
In 1943 two young boys from Himachal Pradesh, Kartar Chand Sharma (18 years) & Hansraj Sharma (14 years), both clever and handy carpenters, join their uncle Rikhi Ram Sharma and Mohan Singh at Sher Mohammad’s shop in Lahore. They also learn how to make sitars and together they form a kind of basic sitar production line until 1947.
In 1947, partition split the country.
Mohan Singh initially went to Amritsar and then moved to Jalandhar (Punjab) where he started the Mohan Singh Shop. In 1959 his son (nephew ??) Gurdial Singh takes over the shop and later changes the name into Gurdial Singh & Sons.
Rikhi Ram Sharma, Kartar Chand Sharma & Hansraj Sharma moved to Delhi and started the Rikhi Ram Musical Instrument Mfg.Co. Their first workshop was initially planted in Paharganj but this is now completely demolished. The showroom of their music shop was build in Connought Place, where at present, the original shop is still there, now run by grandson Ajay Sharma.
They keep on working together until 1959.
In 1959 they get separated. Kartarchand starts his own workshop in Paharganj while in 1962 Hansraj founded Raj Musicals and got settled in a new location near Patel Nagar. The original Rikhi Ram workshop in Paharganj closes down and Rikhi Ram Sharma, together with his son Bishan Das Sharma, start a new workshop at another spot. They also attract new labour men.
Meanwhile, Kartar Chands brother Hari Chand arrives in Delhi in 1954. He gets married one year later and starts working as a mecanic craftsman at TW Carriage & Wagons workshop from the Northern Railway in Delhi. In 1962 he quits this job to join his brother in Paharganj, Together they start making sitars in the Kartar Chand Hari Chand shop at 9050/1 Multani Dhanda, Paharganj, New Delhi 110055.
In 1974 they adopt young (14 years) and tiny Kartar (Kaku) Chand Dhiman as a fixed helper. Kaku’s uncle was at that time working in the Rikhi Ram Sharma’s sitarshop and had asked to Kartar Chand Sharma to teach his nephew how to make sitars. They continuesly built highest quality professional sitars, surbahars & tanpuras. Occasionally also sarods and dilrubas. They also specialise in repair and maintenance and do frequently repair work for Rikhi Ram Musical Instrument Mfg.Co.
In januari 1993, Kartar Chand Sharma (69 years old) unfortunately passes away and Hari Chand Sharma continues the Paharganj Shop alone, regulary assisted by Kartar Chand Dhiman who himself worked out a “mobile” sitar maintenance and repair service in New Delhi for himself.
Today, Hari Chand Sharma aged 77, is getting retired. The Paharganj sitarshop will cease to exist soon. Kartar Chand Dhiman continues his flourishing mobile sitarwork in and around Delhi. He’s now busy constructing a new house in Dashrathpuri. It ‘ll have an extra room so that he’ll be able to do more sitarwork at home.
At the time of writing of this article, Hansraj Sharma is old (82 years) and sick and struggles for his life at home. His 2 sons Suman & Sanju keep on running the shop. They are specialised in Sikh musical instruments like saranda, sikh rabab, dilruba, taus, and sikh pakhawaj which were almost lost in history.
Some interesting economical info:
In 1960, the price of a 100% handmade Kartar Chand Sharma sitar was starting from Rs85 for a simple “student model” up to Rs150 for a professional and fully decorated version. Every now and then the price was raised per Rs5 only….
(Nowadays on e-bay seen $2500)
Kartar Chand Sharma, at their top, produced up to 10 sitars a month (non-decorated types = “student model” or VK model). According to the degree of decoration, the production time of a sitar easily doubles. The trio used to be assisted by a “polish” man and worked 7 days a week, from 7:00 hrs up to 19:00 hrs, many times up to 23:00 hrs. There was only one “holiday” per year, at Divali. That day they reserved for repairing their tools and sharpening the saws and chisels firmly, together with a profound clean-up of the shop.
Today, almost every sitar sold is made starting from a prefab sitarbody fabricated in Calcutta. Hardly anybody builds a sitar 100% handmade anymore. But nevertheless music business is booming. Musical instruments trade grows by 65% a year. (src Raj Musicals)
Raj Musical nowadays has +10 labour man in service at their workshop and 10 people employed in their expanding showroom(s).
Sources & info:
Hari Chand Sharma, interviewed by Klaas Janssens at his house in Dashrathpuri, New Delhi, 21/02/2012.
Article about musical heritage: “The last of the sitar makers” by Sonia Malik, published in The Express Tribune, 24/09/2011.
Both Rikhi Ram brothers Ajay & Sanjay, and after them many others, make and sell this handy and compact sitar. Some call it “Ovation” sitar, some call it “Studio” sitar and also “Travel” sitar is commonly used for this successful innovative musical instrument. Commercially it is a succes. No doubt about that.
But here is a list of remarks and complaints with which players came to me after they have been buying a new travel sitar in New Delhi. In my opinion there are a number of improvements that could be achieved rather easily:
The pickup doesn’t sound good, and comes loose in no time. So you can install a better one. (see Travel Sitar Mods (1) )
The tuning machines are cheap and crappy, and can get stuck after a few string changes. Also here it’s a good investment to install better ones. (see Travel Sitar Mods (1) )
Not much care has been taken to fit the jora tar properly. Only one travel sitar from Sanjay’s Rikhi Ram was ok. Too often there is need for intonation adjustment. (see Travel Sitar Mods (2) )
There are also some complaints about the finishing touch:
Parda’s which were made too short are installed anyways. A friend of mine has lost a parda while performing on stage with his “brand new” instrument. Floops, suddenly there it goes…
The new style decoration strips look like a cheap copy of simple western repetitive patterns. And when they are fit on the body they are not always correctly matching.
And finally there is my personal opinion concerning the “amputated” head. Of course this square leftover stump is one of the main basic improvements made to recent sitar making and playing in general since many years. But to me, it doesn’t look beautiful. I regret the lack of creativity. Isn’t it a missed chance to make this sitar look nicer on stage?
So, inspired by my own developed series of new style sitars I want to introduce my ultimate travel sitar modification. For this experiment I use a travel sitar body which I’ve been buying from Raj Musicals in New Delhi.

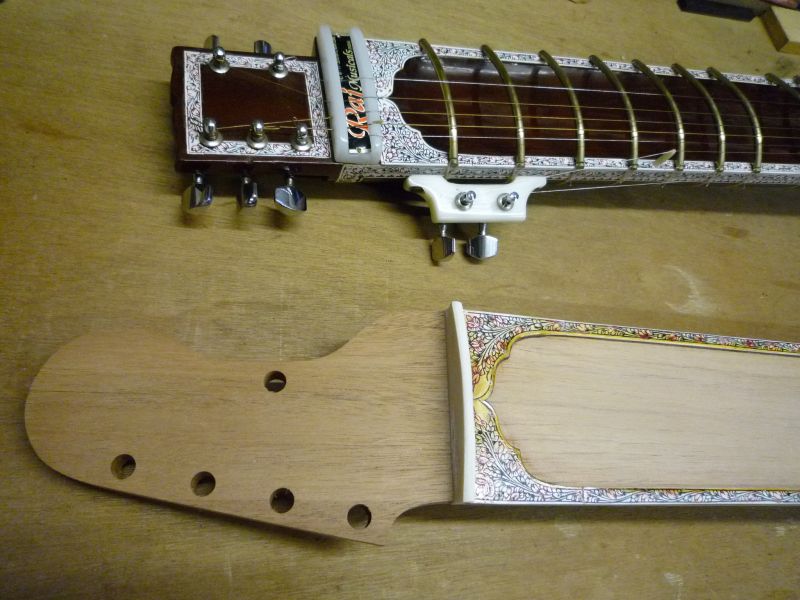

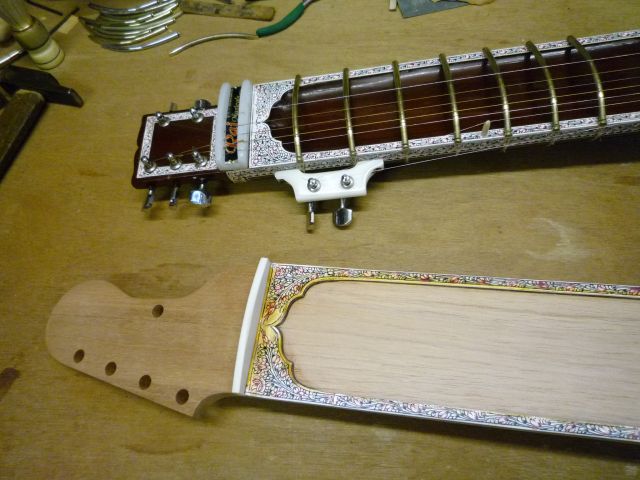

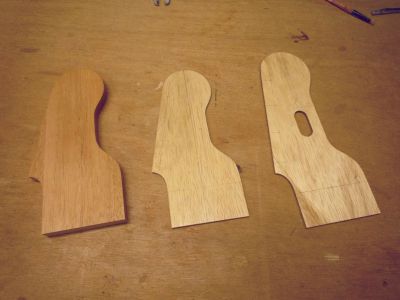

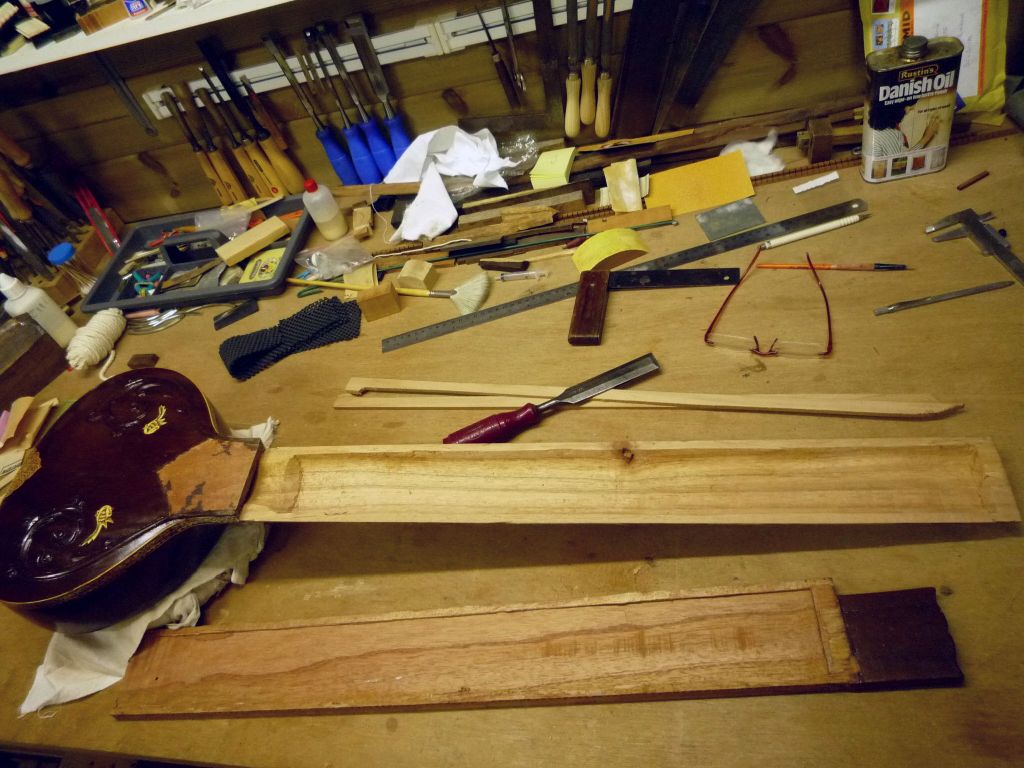

I started with opening the sitar neck and removing the square stump piece. Then I created a new head piece derived from the SAS and SBS sitar heads draft. In order to maintain strenght in the new construction the original neck’s top plate also had to be renewed. The celluloid decoration will be re-used on top of the new plate.
